Daikin Multi Split System Air Conditioning

TC AIR supplies Daikin’s full range of Multi Split System air conditioners. Designed for air conditioning one room or a specific area of a home, and using a wide range of indoor units to suite your style and needs.

☀ Reverse Cycle    ❄ Cooling Only

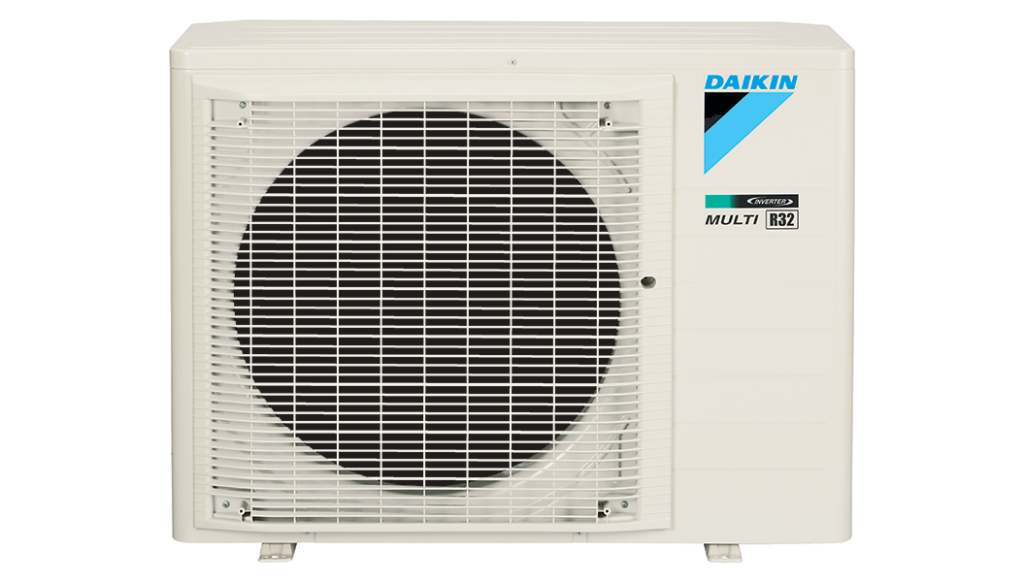

Daikin Multi split outdoor unit

SUPER MULTI NX

INDOOR UNIT: WALL MOUNTED, BULKHEAD, FLOOR STANDING, CEILING SUSPENDED OR CASSETTE      ☀  ❄

Available in: Reverse Cycle (Heating or Cooling) or Cooling Only
Capacities: Reverse Cycle: 5.2kW, 6.8kW, 8.0kW, 10.0kW / Cooling Only: 5.8kW, 6.8kW, 8.0kW, 10.0kW
Refrigerant: R410A
Power Supply: 1 Phase, 220-240, 50Hz
Indoor Unit Type: Wall Mounted, Bulkhead, Floor Standing, Ceiling Suspended or Cassette


With a wide variety of Daikin indoor units available, it is easy to select a model that matches your home’s interior and needs.

A Super Multi NX air conditioning system allows you to control indoor units individually. So the ideal temperature can be maintained while keeping the running cost low as only spaces requiring air conditioning are switched on.

Convenient Control: Wired and wireless controllers allow individual control of settings such as temperature, airflow and scheduled operations.

Intelligent Comfort: Wall mounted indoor units have Daikin’s Intelligent Eye human sensor that reduces draughts and saves energy when the room is unoccupied.

Truly Versatile: Up to 5 indoor units can be connected to the outdoor unit.

Energy Efficient: Rooms requiring air conditioning can be switched on independently.

Priority Room Comfort: Allows you to shift capacity from the other rooms to your priority room for rapid cooling or heating of the space.

Individual Comfort: Each indoor unit can be individually controlled, scheduled and set to the desired temperature.


Daikin Multi Split Outdoor unit 2

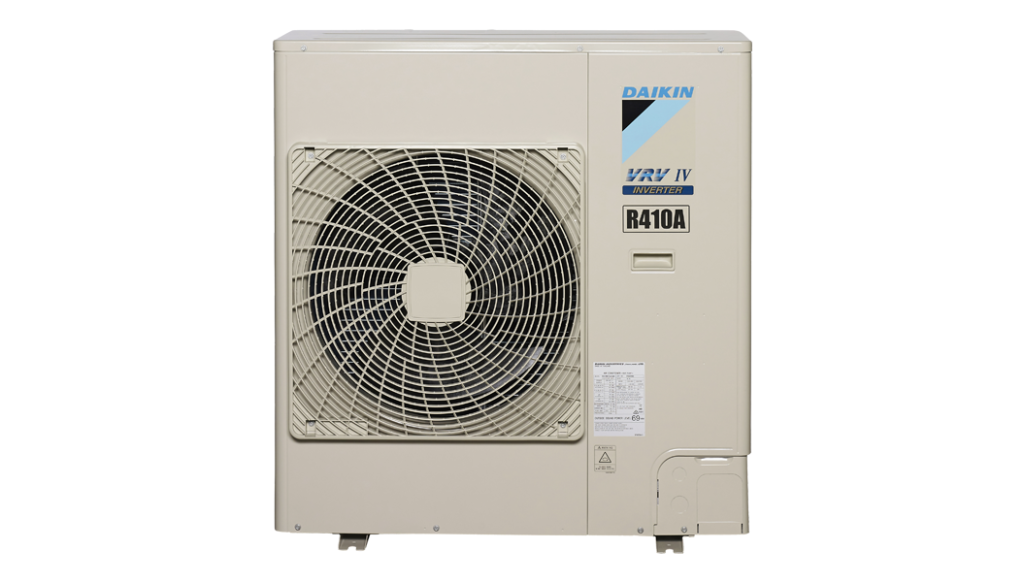

VRV IV-S

INDOOR UNIT: WALL MOUNTED, BULKHEAD, FLOOR STANDING, CEILING SUSPENDED OR CASSETTE     ☀  ❄

Available in: Reverse Cycle (Heating or Cooling)
Capacities: 9.0kW, 11.2kW, 14.0kW, 16.0kW, 22.4kW, 24.0kW
Refrigerant: R410A
Power Supply: 1 Phase, 220-240, 50Hz
or 3 Phase, 380-415v, 50Hz
Indoor Unit Type: Wall Mounted, Bulkhead, Ducted, Floor Standing, Ceiling Suspended or Cassette


Daikin’s VRV IV-S multi split air conditioning system incorporates the latest technology from their VRV commercial air conditioners including great energy efficiency, quiet operation and long piping runs of up to 100m (24kW Model) for condenser placement. The compact size and horizontal discharge design of this outdoor unit are also a bonus.

Night Time Quiet Mode: Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.

Intelligent Comfort: Wall mounted indoor units have Daikin’s Intelligent Eye human sensor that reduces draughts and saves energy when the room is unoccupied.

Ultimate Versatility: Up to 14 indoors can be connected ranging from wall mounted, floor standing, bulkheads, cassettes and ceiling suspended units.

Compact Footprint: A large range of capacities available. Plus the system has a tight installation footprint with long piping runs of up to 100m(24kW Model).

Energy Efficient: Rooms requiring air conditioning can be switched on independently.

Individual Comfort: Each indoor unit can be individually controlled, scheduled and set to the desired temperature.


Minimum Energy Performance Standards (MEPS)

All Daikin air conditioners exceed MEPS requirements, showing their commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.

Daikin Controllers

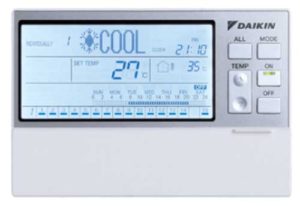

Daikin residential wired controller

Daikin Residential Wired Controller

  • Backlit Display
  • Individualised Scheduling for each indoor unit
  • Convenient Group Control
  • Centralised Control for up to 16 indoor units
  • One Touch Control
  • Outside Temperature Display

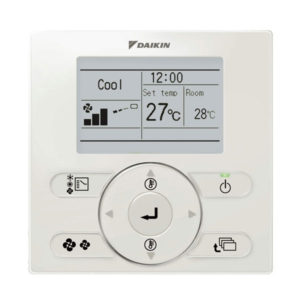

Tc air Daikin Nav ease controller

Daikin Nav Ease Controller

  • Backlit Display
  • Home Leave Function turns off the system when room drops below 10°C
  • Temperature Limit to predefine a temperature range
  • Weekly Schedule Timer for on and off times
  • Quick Heat/Cool Mode
  • Off Timer Feature turns your AC off after predefined time
TC Air and Daikin's 5 year warranty

All TC AIR’s Daikin installations of split, multi split and ducted air conditioners are covered by Daikin’s 5-year parts and labour warranty
