Daikin Slimline Ducted System

Daikin Ducted Air Conditioner – SLIMLINE DUCTED

Ducted Air Conditioner from Daikin

Available in: Reverse Cycle (Heating & Cooling)
Capacities: 5.0kW, 6.0kW, 7.1kW, 8.5kW, 10.0kW, 12.5kW, 14.0kW
Refrigerant: R32
Power Supply: 1 Phase, 220-240v, 50Hz or 3 Phase, 380-415v, 50Hz

Smartphone Control (optional)

Reverse Cycle

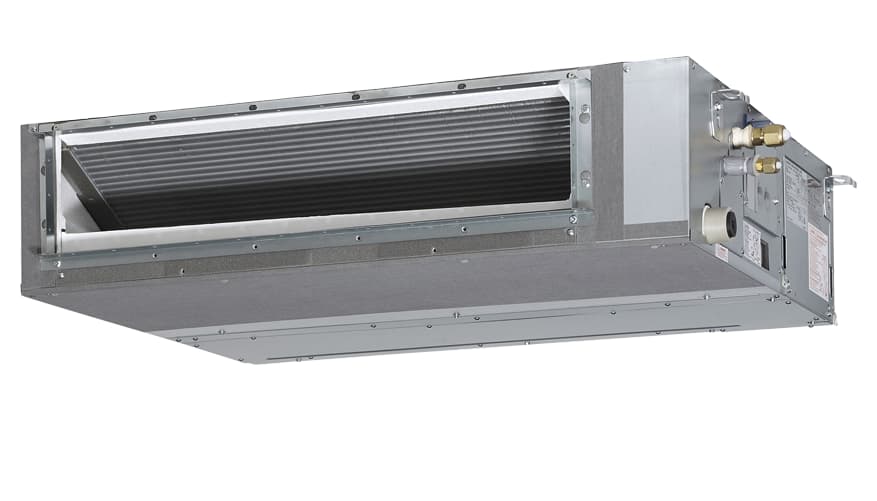

Daikin Ducted Slimline

Ideal for narrow ceiling spaces or under the floor, this ducted system meets the challenges of modern commercial and medium density apartment development.

Features

DESIGN FLEXIBILITY

DC FAN WITH AN STATIC PRESSURE OF 150PA AND UP TO 75M (100 CLASS) OF AVAILABLE PIPE RUN TO SUIT YOUR DESIGN LAYOUT

SLIM-LINE INDOOR

INDUSTRY LEADING LOW PROFILE DESIGN OF 245MM HEIGHT ENSURES CLEARANCE IN MOST NARROW ROOF SPACES

AUTOMATIC AIRFLOW ADJUSTMENT

ALLOWS THE FAN SPEED TO ADJUST AUTOMATICALLY TO SUIT YOUR DUCT DESIGN FOR OPTIMUM AIRFLOW DISTRIBUTION

R22 RETROFIT CAPABILITY

PROVIDES A COST EFFECTIVE AND CONVENIENT UPGRADE FROM AN EXISTING R22 DUCTED SYSTEM WHILST RETAINING THE FIELD PIPING

FLEXIBLE RETURN AIR

OPTION OF A REAR OR BOTTOM SUCTION RETURN ALLOWS FOR GREATER INSTALLATION FLEXIBILITY

BUILT-IN CONDENSATE PUMP

DC CONDENSATE PUMP IS EQUIPPED AS STANDARD WITH A 850MM LIFT

Daikin Ducted Air Conditioning Models
